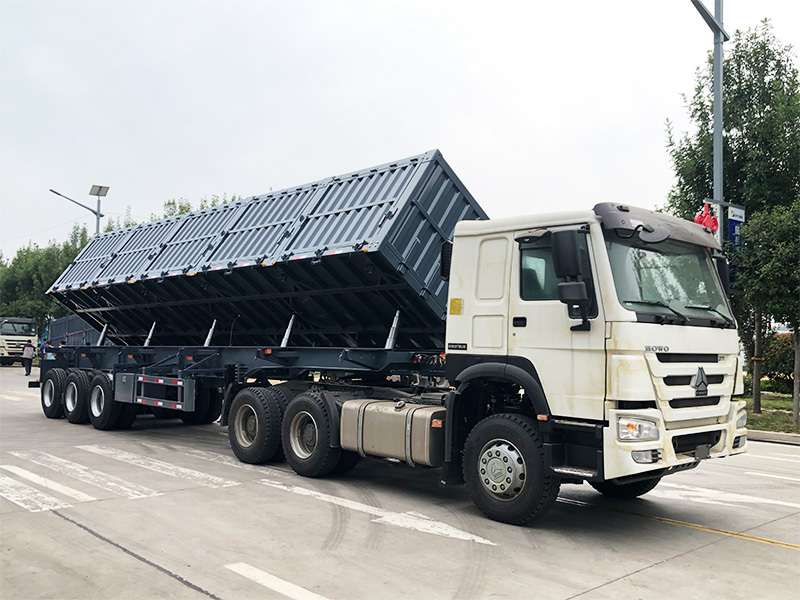

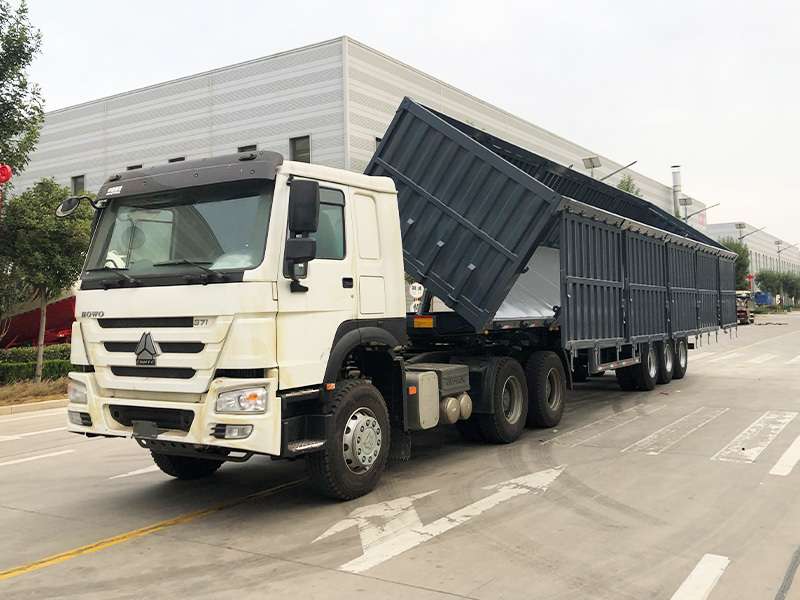

Side Tipper Trailer

Operators searching for side tippers for sale usually need a trailer that can dump on either side without repositioning the rig, which matters most on narrow bench roads inside a quarry or open-pit mine. This side tipper trailer uses twin hydraulic rams to tip the body to roughly 50 degrees on either flank, and the standard 34 ton side tipper rating covers most iron ore, coal, and aggregate routes. Because the unit is built as a semi-trailer rather than a rigid truck side tipper, it swaps between tractor units easily when one goes down for service, which fleet operators buying a side tipper truck for sale usually value more than they expect until the first breakdown.

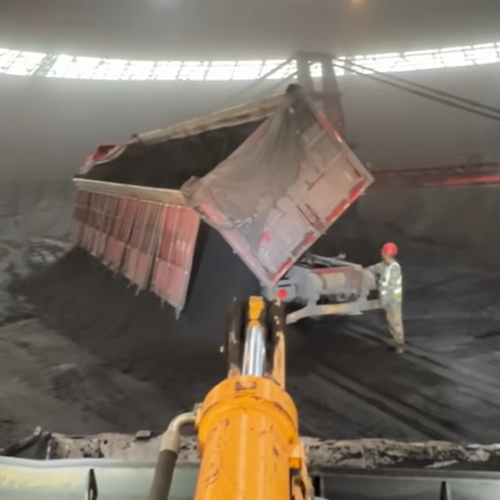

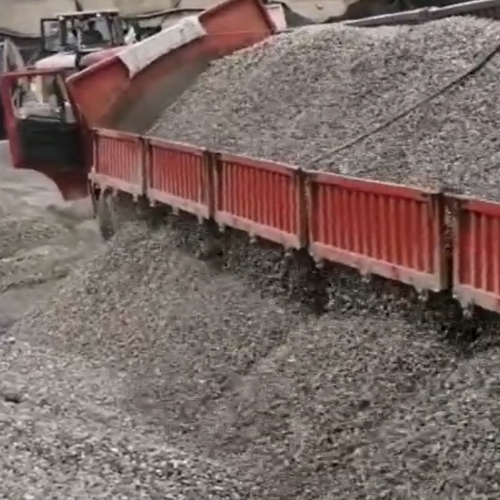

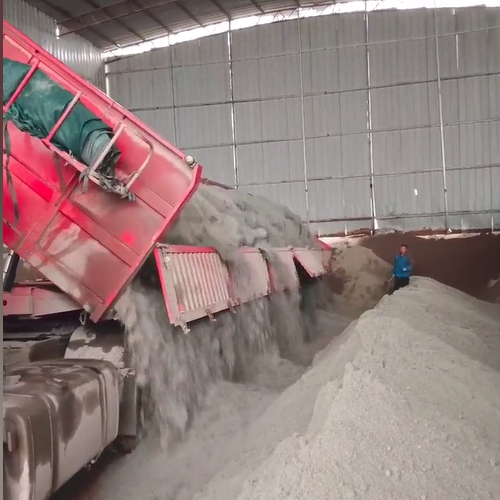

Dual-Side Dumping for Narrow Haul Roads

The side tipper trailer dumps from either side using twin hydraulic rams, which matters on quarry bench roads and open-pit ramps too narrow for a rig to reverse and turn before an end-dump. Buyers browsing side tippers for sale for this kind of route usually rank cycle time above raw payload, since a side-tip cuts the maneuvering time that a standard dump trailer needs on the same haul road. SIGMA builds the tipping body from Q345B steel with a Hardox 450 liner on the floor and lower walls, the section that takes the heaviest abrasion from ore, coal, and crushed rock.

Payload and Axle Ratings

The standard build carries a 34 ton side tipper rating on a tri-axle FUWA or BPW bogie, with tare weight held to 8.8 tons so more of the gross combination weight goes to payload. Customers hauling lighter bulk material like grain sometimes step up to a quad-axle version for extra volume, while those on shorter routes stick with the tri-axle for easier maneuvering. Suspension is mechanical leaf spring by default, matching the rough haul roads this trailer usually runs, though SIGMA fits air suspension on units that also travel sealed public roads to a flatbed trailer transfer yard or rail siding.

Trailer vs Fixed Truck Configuration

A side tipper trailer differs from a rigid truck side tipper in one practical way: it detaches from its tractor unit. Mine and quarry fleets running this trailer keep a smaller pool of tractors in rotation, since a tractor pulled off for service doesn't take a tipping body out of service with it. Fleets that also move excavators or wheel loaders between benches usually run a lowbed trailer alongside their tipping units for that equipment, keeping the side tipper dedicated to bulk material only. Contractors needing the capability for a single short project sometimes look at side tippers for hire or side tipper rentals rather than a straight purchase, though SIGMA's build quality holds up well enough that most hire fleets eventually convert to ownership.
