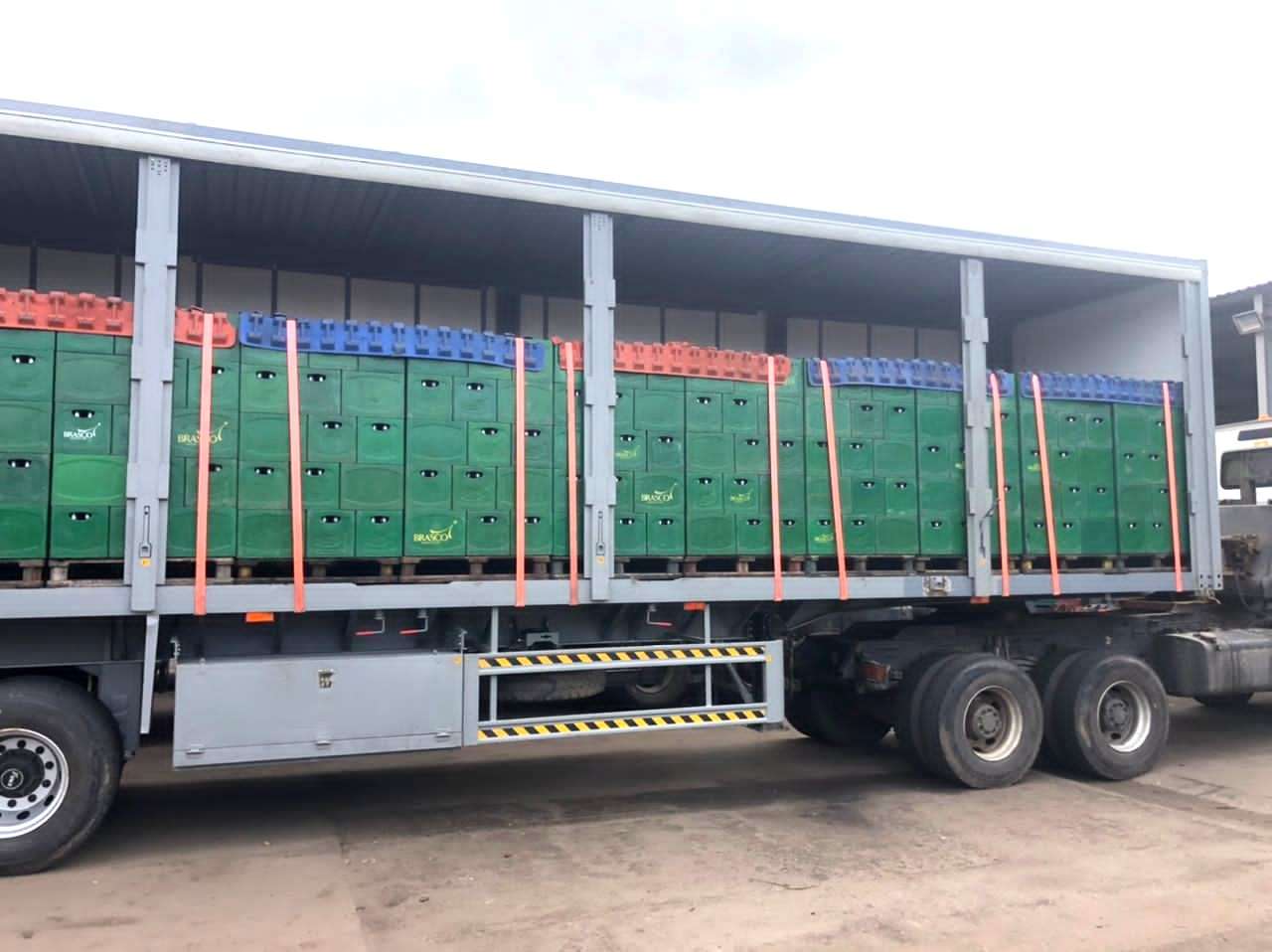

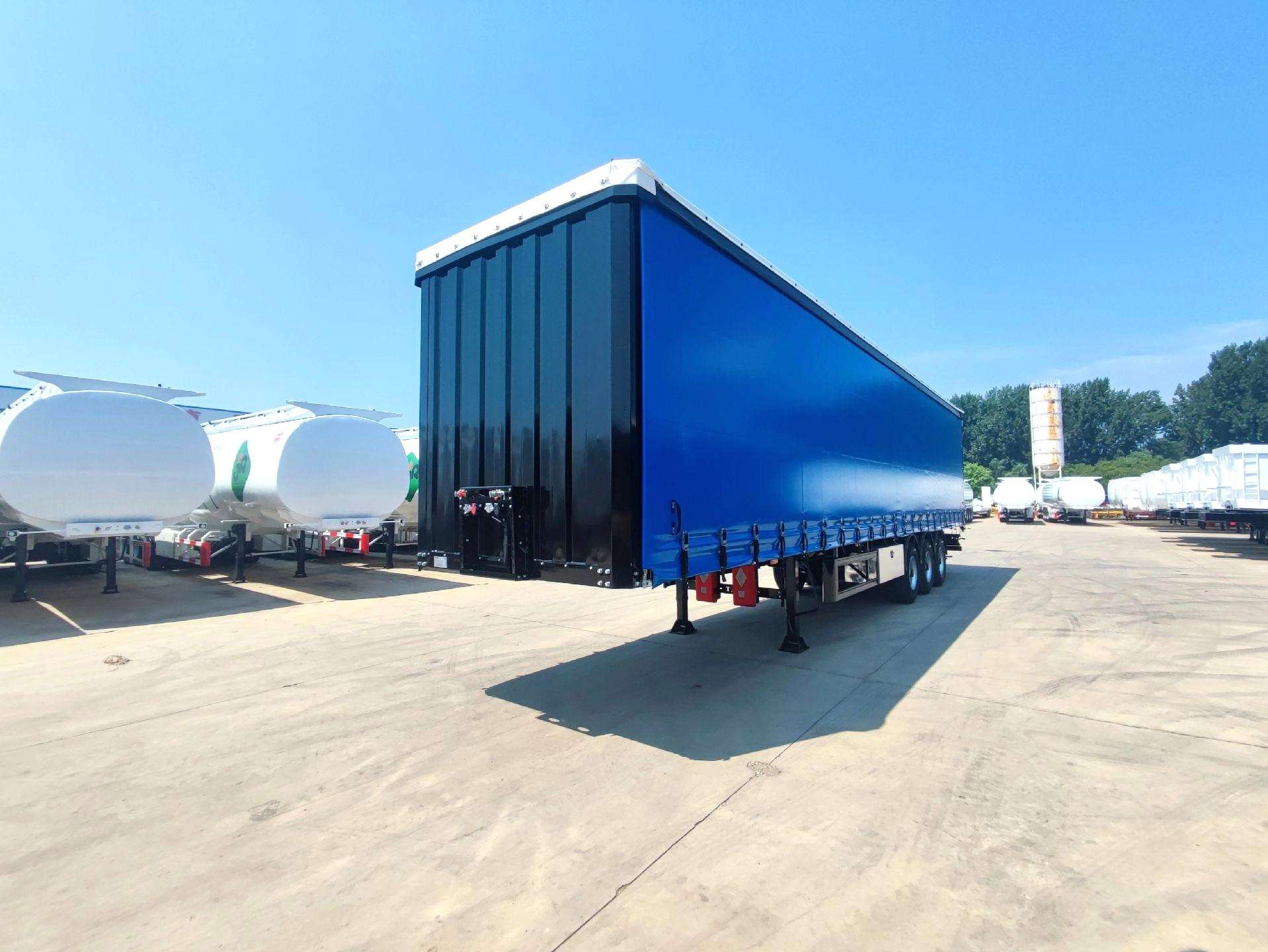

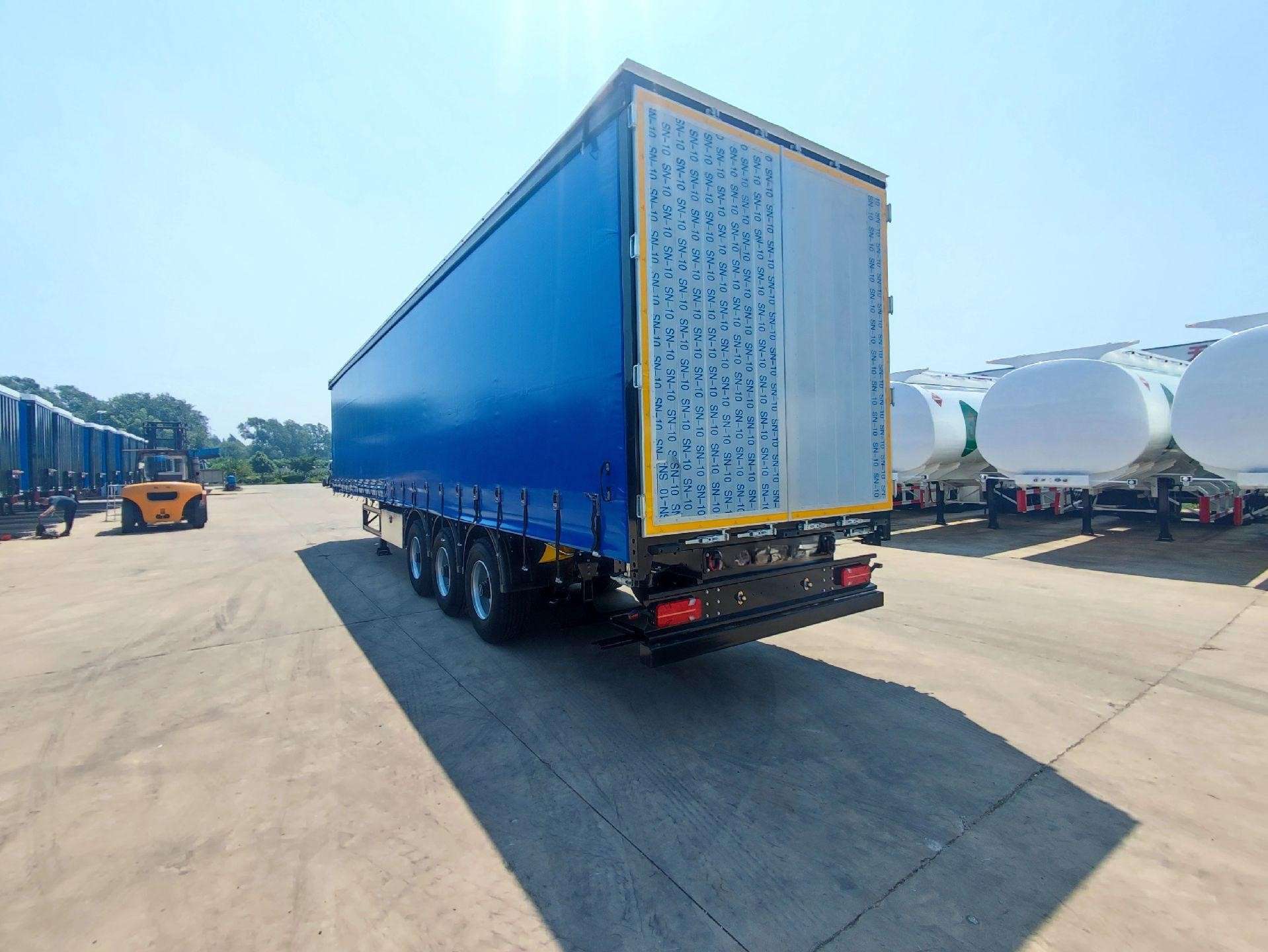

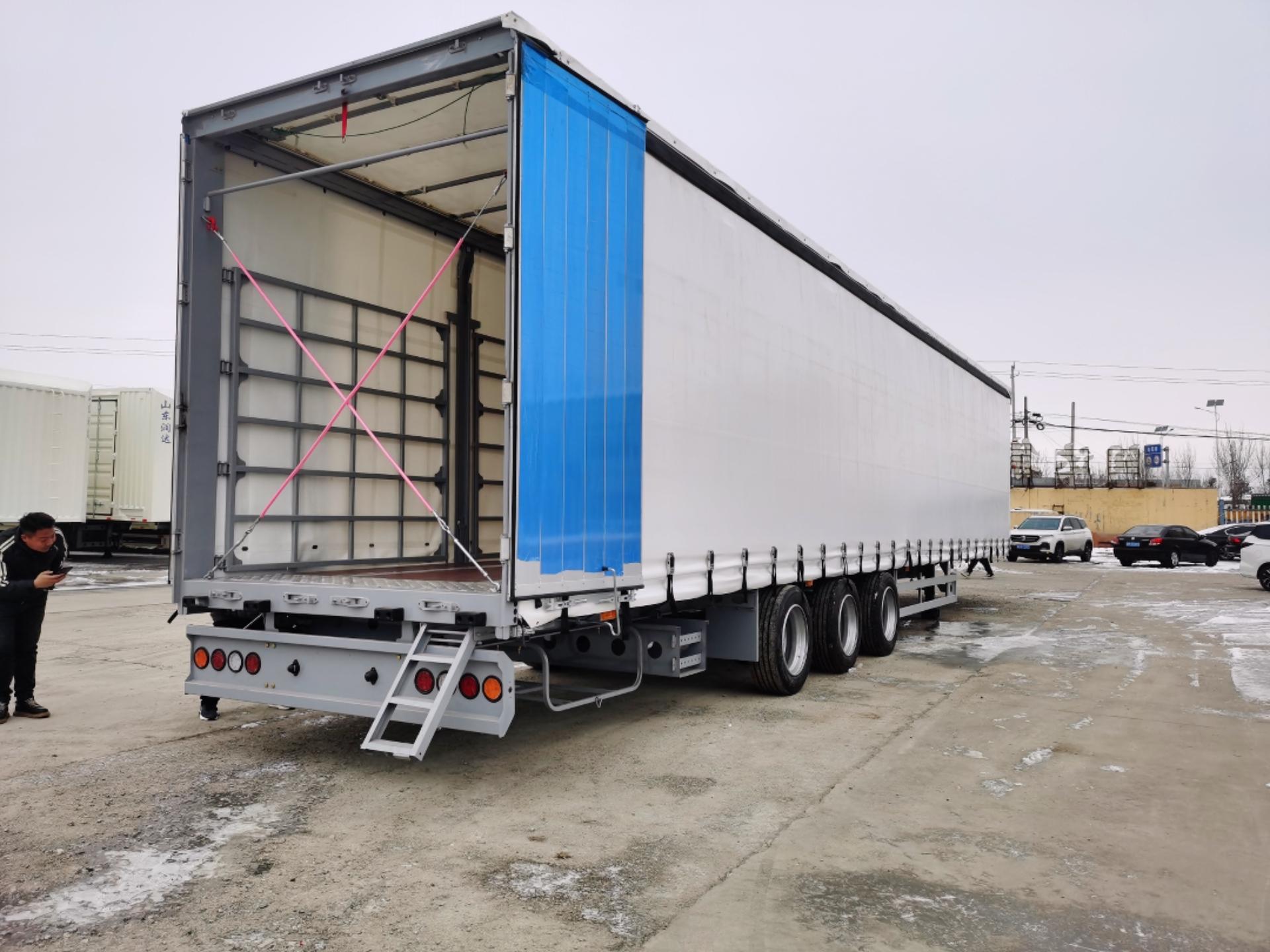

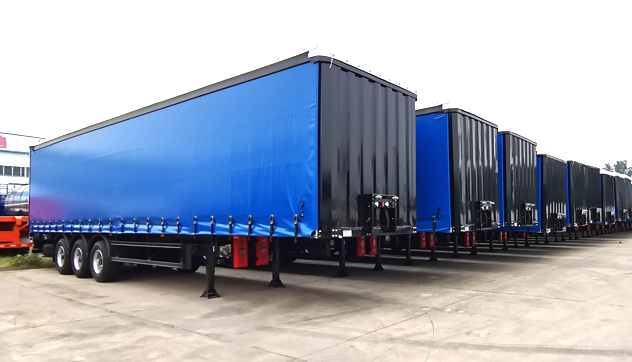

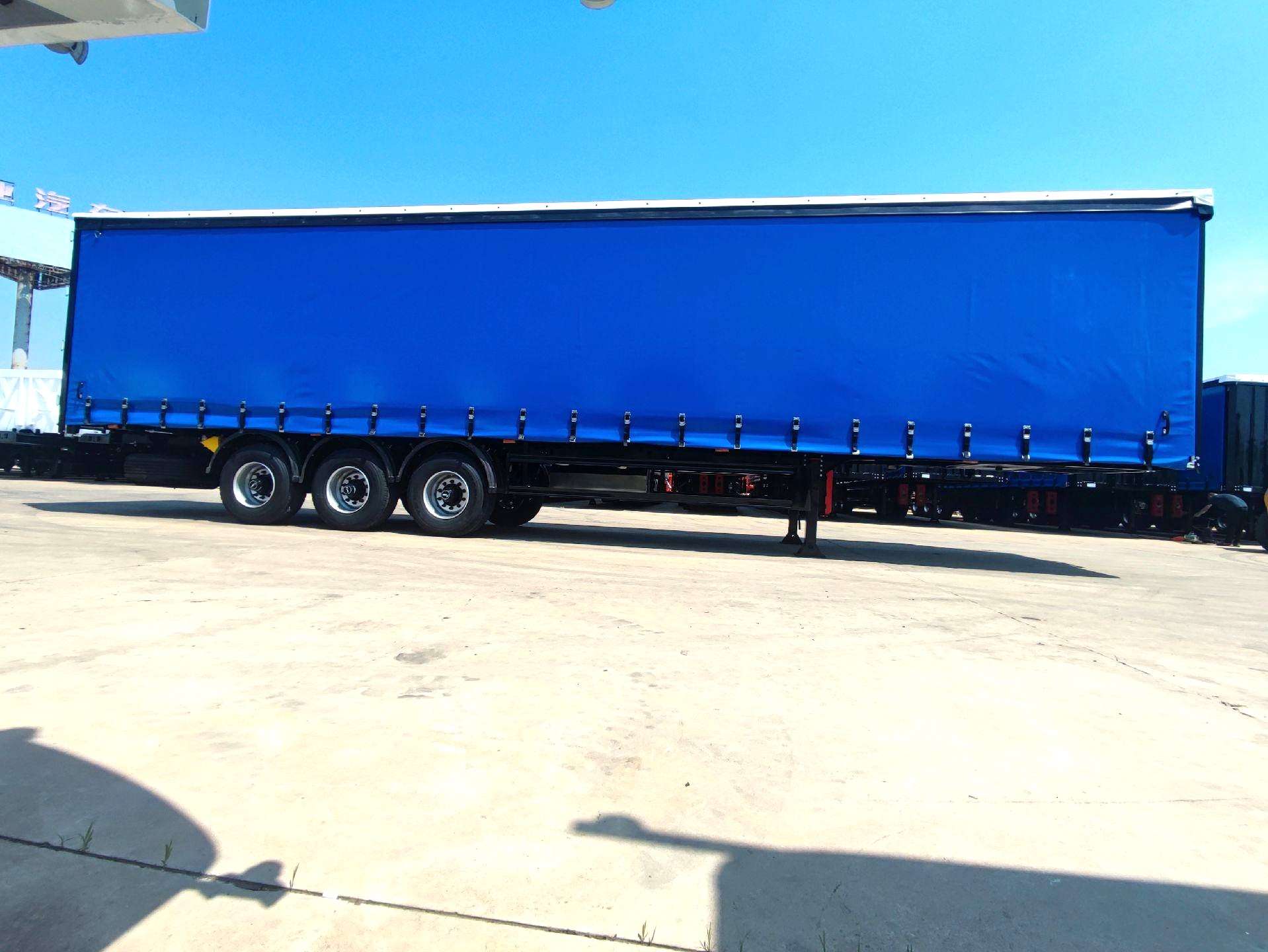

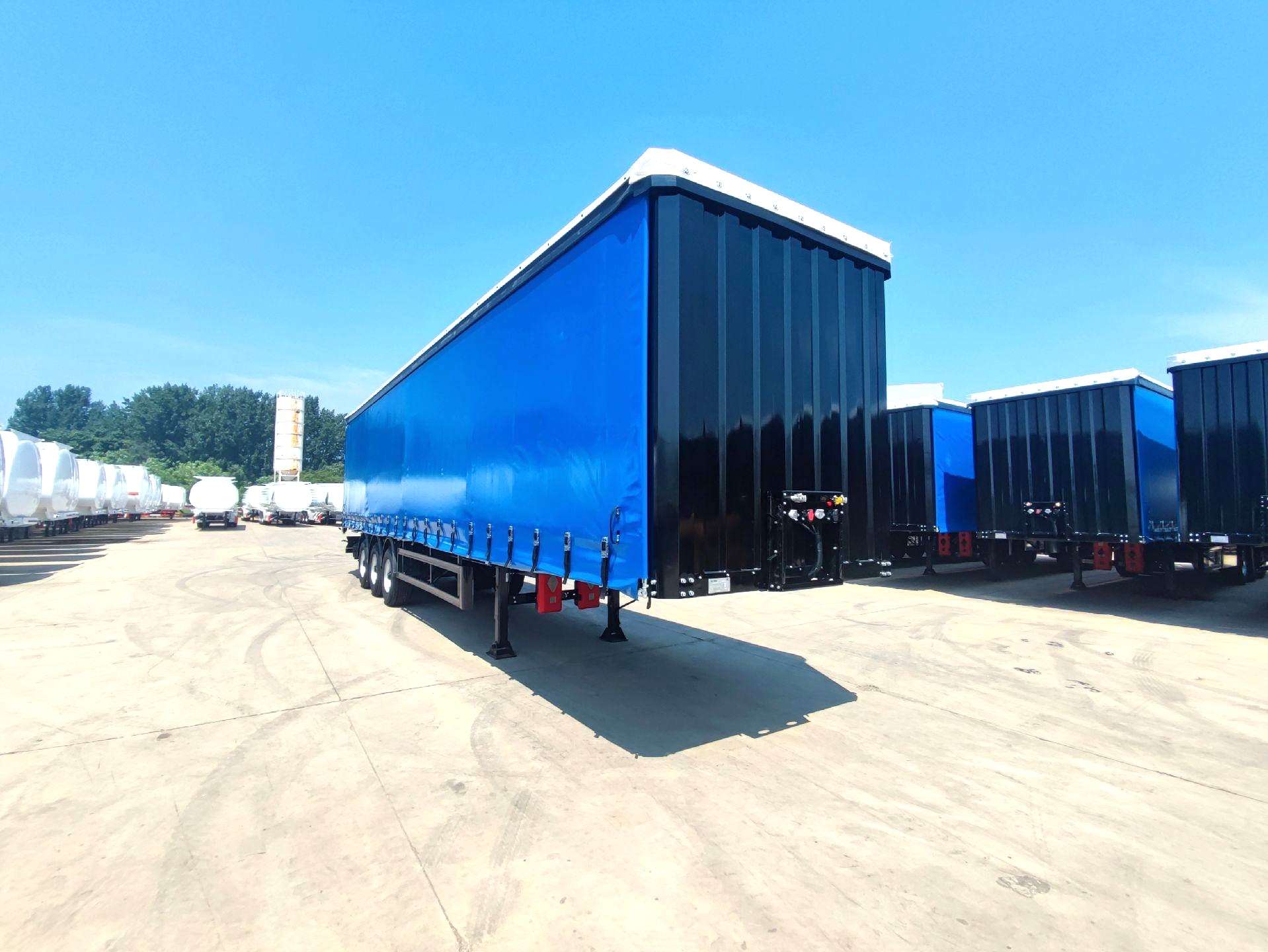

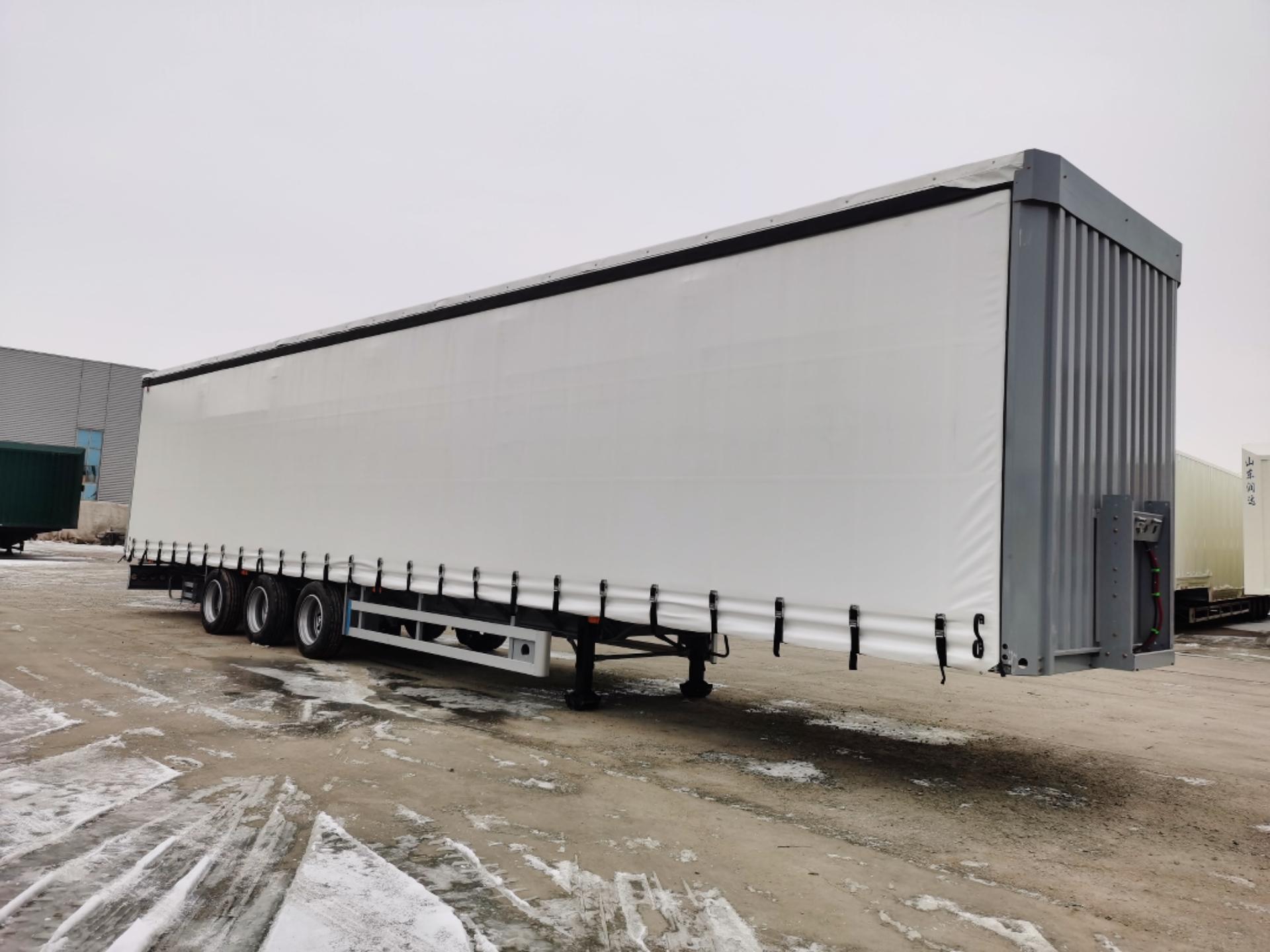

Curtain Side Trailer

The curtain side trailer pairs an aluminum frame with tensioned PVC curtains that slide open along the full length of either side, so forklifts load pallets directly into the bay instead of backing up to rear doors. Compared to a rigid box body, this curtain trailer configuration cuts loading time at multi-drop distribution stops, which is why curtain sider lorry operators running retail and FMCG routes prefer it over a standard dry van. Roof bows support an optional roll-back tarpaulin roof for top loading by crane, and the same running gear is available in a superlink tautliner combination for fleets needing higher payload under interlink permits.

Side Access Without Sacrificing Weather Protection

A curtain side trailer solves a problem a standard enclosed box doesn't: loading and unloading at several stops a day without maneuvering into a dock or opening rear doors every time. Forklift operators drive straight into the bay from either side once the curtain is pulled back, which is the whole reason curtainsider bodies took over retail and FMCG distribution routes in markets where curtain side trailer fleets replaced older flatbed-and-tarp setups. Buyers researching a curtain side trailer for sale or a curtain trailer for sale are almost always comparing this exact configuration against a rigid box body. The tensioned PVC curtain still closes fully for weather protection between stops, so cargo isn't exposed the way it would be on an open flatbed.

Curtain and Rail System Built for Daily Cycling

The sliding mechanism on this curtain trailer runs on an aluminum rail bolted to reinforced roof bows, so the curtain opens and closes hundreds of times a month without the fabric sagging or the rail seizing. Tensioning straps at the base keep the curtain taut against the frame at highway speed, which matters for a curtain sider lorry running long-distance routes as much as short urban drops. Replacing worn curtainsider curtains is a straightforward rail-slide job rather than a full body rebuild, since the tensioning straps and rail hardware are designed to be serviced independently of the frame. Corner and rear frame posts are reinforced beyond what a standard tautliner needs, since curtain sides remove the structural support a solid panel would normally provide.

Superlink Configurations for Higher Payload

Fleets running under interlink or superlink permits pair this trailer with a matching drawbar unit to move more freight per trip without adding another prime mover. The superlink tautliner combination uses the same curtain and rail hardware on both units, keeping spare parts and curtain replacement stock interchangeable across the fleet. For routes that mix curtain-sided freight with heavier equipment loads, the Low Bed Trailer runs on comparable axle spacing, so a single fleet workshop can service both trailer types without separate tooling.

Suspension and Chassis Specification

Air suspension is standard on this configuration rather than optional, because curtain-sided cargo is more sensitive to road shock than palletized loads on an open Flatbed Semi Trailer — a curtain and rail system that flexes under repeated jolts wears out faster than the trailer's other components. The 3-axle, 13T axle setup spreads a 30-32 ton payload evenly, and the 2-inch kingpin matches standard fifth-wheel couplings across most tractor brands in service across export markets.
