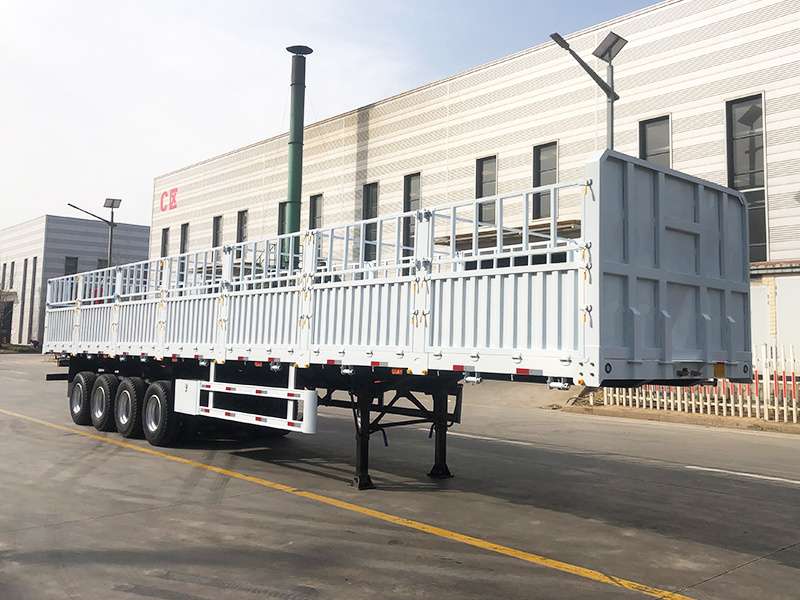

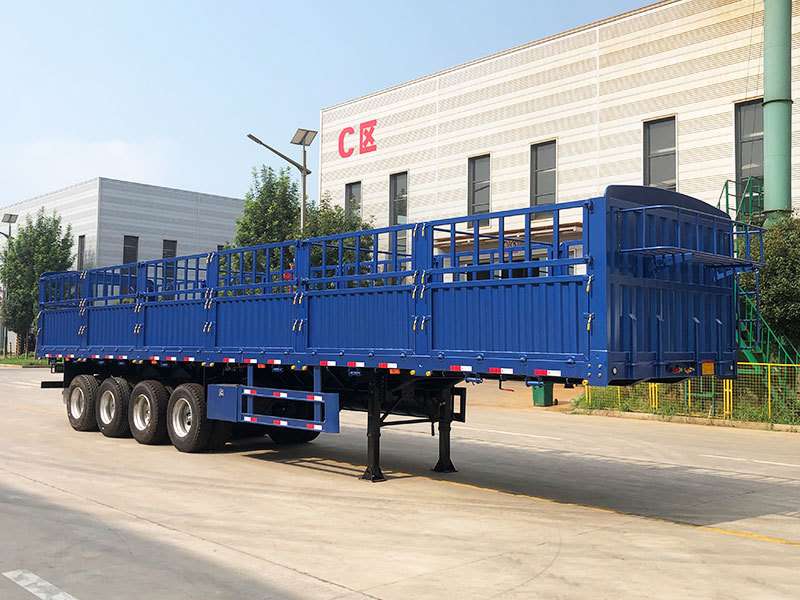

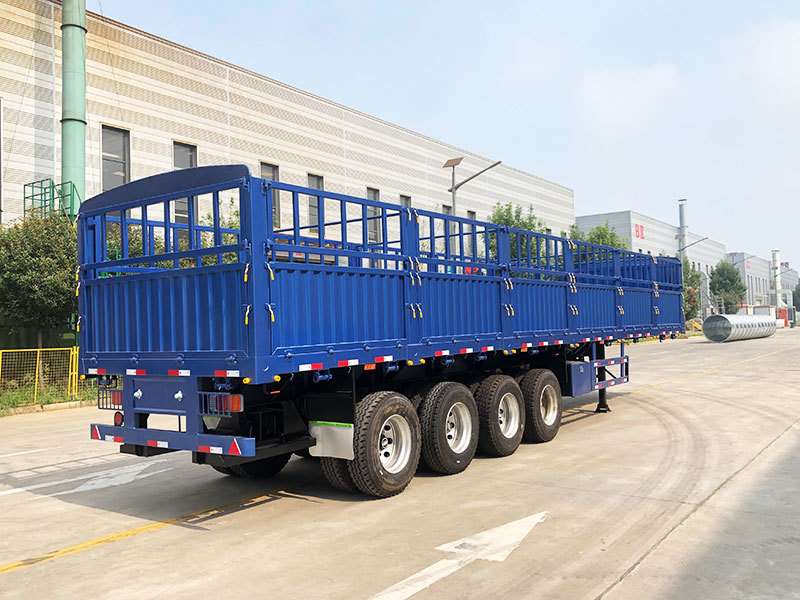

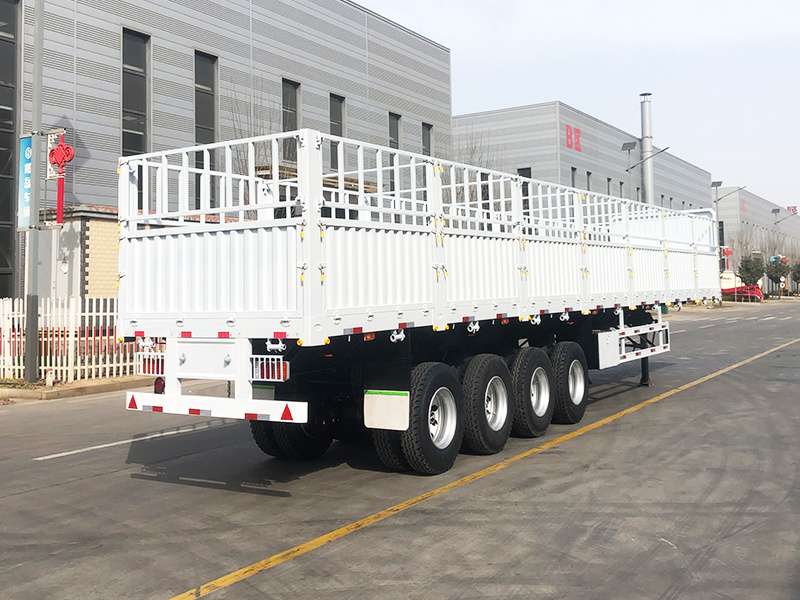

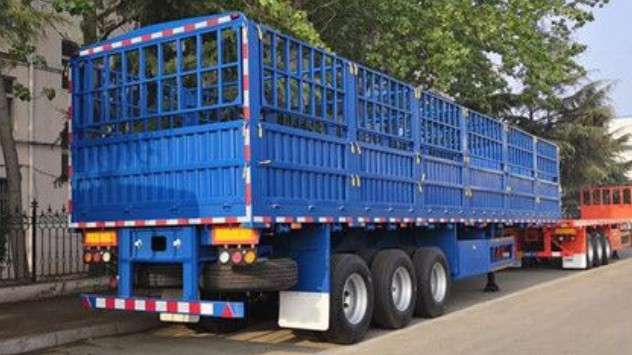

Fence Cargo Semi Trailer

Built as an open-deck semi cargo trailer, the frame carries removable stake posts and fence-style side panels that drop or unbolt for top-loading and side-loading in the same trip. Compared to a fully enclosed van, a fence cargo trailer keeps tare weight lower and gives crane operators clear access to the load without opening rear doors first. The steel deck and reinforced corner posts hold up to repeated loading with forklifts or overhead cranes, which is why buyers shopping for semi cargo trailers for sale in agricultural and construction supply chains lean toward this configuration over a closed box body.

An Open-Deck Alternative to the Closed Box

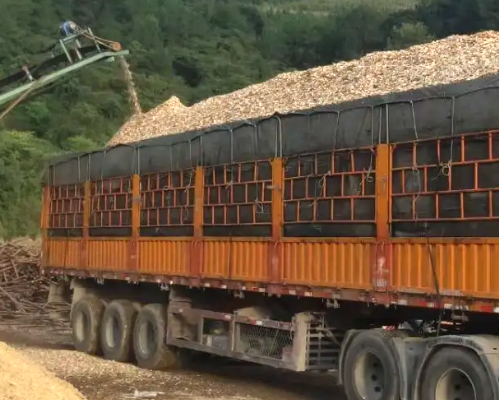

Not every load needs a sealed body. A cargo semi trailer with fence-style sides works better for palletized goods, bagged agricultural produce, or building materials loaded by crane or forklift from above rather than through rear doors. The removable fence panels come off completely when the load needs full-width access, or stay in place with the top open for straightforward stacking. Fleets running mixed cargo — some loads needing containment, others needing open access — get more flexibility from this cargo semi trailer than from a fixed enclosed body, without giving up the deck strength needed for repeated loading. Buyers who start out searching for a car hauler cargo trailer or a small u haul cargo trailer for occasional moves usually step up to this heavier-duty fence-sided semi once volume outgrows a light-duty rental unit, and operators moving powder or grain instead often want a sealed dry bulk cargo trailer rather than an open deck.

Fence Panel Construction and Loading Access

The fence side panels on this semi cargo trailer bolt into reinforced corner posts, so individual sections come off for wide loads or stay fully assembled for smaller palletized cargo. Panel height runs from 600 mm for low-profile loads up to 1,200 mm where extra containment is needed, and the fence cargo trailer configuration keeps the deck itself clear of fixed obstructions that would slow forklift access. A drop tailgate at the rear handles loads that come in and out from behind rather than from above, which matters for depots running mixed loading equipment.

Deck and Chassis Specification

Fleets comparing semi cargo trailers for sale against a standard Flatbed Semi Trailer usually decide based on how often loads need side containment versus a completely flat deck. Deck length starts around what a 24 foot cargo trailer for sale offers on the short end and extends up to a full 13m platform for higher-volume routes. The steel checker-plate floor on this unit resists puncture from pallet forks and dragged loads, while the Q345B frame and mechanical bogie suspension keep tare weight in a range that leaves room for a 35-ton payload. For routes that also carry heavier, taller, or oversized equipment, the Low Bed Trailer uses the same coupling and axle components, simplifying spare parts across a mixed fleet.

Axle and Suspension Choices for Regional Roads

Two-axle configurations suit shorter routes and lighter regional loads, while three-axle setups spread a 35-ton payload across more tire contact area for longer highway hauls. Mechanical leaf-spring bogie suspension remains the standard for this trailer class because it tolerates unpaved yard surfaces and rough farm-to-market roads better than air suspension, and needs less specialized maintenance in markets without ready access to suspension parts. The 2-inch kingpin and 12R22.5 tire setup match common tractor units across Africa, Southeast Asia, and Latin America, so the trailer pairs with whatever prime mover a fleet already runs.
